Home > ProductsTES Series thermoelectric modules for lower current and heat pumping application





Typical applications: CPU cooler and scientific  instrument.

Part Number

Data obtained at hot plate temperature Th=27°C.

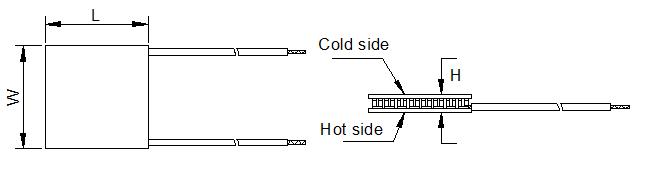

Dimension

LxWxHmm

Specification Sheet Download

Imax(amps)
DTmax(°C)
Umax(volts)
Qmax(watts)

TES1-01715

1.7

70

2.24

2.41

10x10x3.95

TES1-01720

2.9

70

2.16

3.87

11.25x11.25x3.6

TES1-03112

1.4

70

3.9

3.4

12x12x4.0

 TES1-03115

1.7

70

3.9

4.2

12x12x4.0

TES1-03120

2.1

70

3.9

5.2

12x12x3.7

TES1-03125

2.8

70

3.9

6.8

15x15x3.4

TES1-03130

3.7

70

3.9

9.0

15x15x3.6

TES1-03139

4.7

70

3.9

11.4

15x15x3.2

TES1-03540

4.1

70

4.5

11.3

20x10x3.6

TES1-03850OD24ID9.8

5.8

70

4.7

17.1

24x9.8x3.1

TES1-04720CR1.5

2.5

70

5.9

9.2

23x23x3.0

TES1-04920

2.5

70

6.1

9.6

23x23x3.0

TES1-05350

5

70

6.8

21.4

12x36x3.2

TES1-06320

2.4

70

8.0

11.9

30x15x3.9

TES1-06320M

2.4

70

8.1

12.2

24.7x12.3x3.4

TES1-06325

2.8

70

8.0

13.8

15x30x4.0

TES1-06330

3.6

70

8.0

17.7

30x15x3.6

TES1-06330S

3.3

70

8.0

16.3

15x30x3.6

TES1-06339

4.3

70

8.0

21.2

30x15x3.2

TES1-06520

1.6

70

8.3

8.4

17x17x3.6

TES1-07115

1.85

70

9.0

10.4

18x18x3.7

TES1-07120

2.2

70

9.0

12.3

18x18x3.4

TES1-07125

3.2

70

9.0

17.8

23x23x3.6

TES1-07130

3.7

70

9.0

20.6

23x23x3.6

TES1-07139

4.1

70

9.0

23.0

23x23x3.2

TES1-07160

6.0

70

9.0

33.4

22.4x22.4x2.25

TES1-12715

1.8

70

15.9

18.1

25x25x4.05

TES1-12720

2.4

70

15.9

24.2

25x25x3.35

TES1-12730

3.5

70

16.2

34.9

30x30x3.6

TES1-12739

4.6

70

16.0

46.2

30x30x3.2

TES1-12740P

4

70

15.9

40.3

31x34x3.2

TES1-12741S1

3.6

70

16.2

35.9

14.3x53x3.7

TES1-12760

6

70

15.9

60.5

30x30x2.9

TES1-13160C

6.4

70

16.4

66.5

36.2x48.4x3.3

TES1-17760

7.0

74

23.4

104.2

16.7x(34.2x2)x2.8

TES1-15280P

9.1

70

19.3

108.5

16.76x72.4x2.4

TES1-19970

7.0

70

25.6

112.2

30x30x2.8

TES1-23924

2.4

70

30.8

46.3

30x40x3.4

TES1-254150

15

70

32.3

298.8

60x30x3.4

TES1-28630

3

70

36.4

67.3

45x45x4.7



If you did not find thermoelectric module that meets your requirements, we are ready to design the one at your request.
